Manufacture in India : trusted excellency PROVEN GLOBALLY

METALLIC EXPANSION JOINTS

Belman is a global supplier & manufacturer of metallic expansion joints to leading customers internationally including in India.

Since 1994, Belman has engineered, manufactured and supplied a wide range of customised metallic expansion joint solutions, ranging from the simple to the most complex designs including axial expansion joints to FCCU expansion joints. Belman Flexibles India is also strengthen with the intensive knowledge and Danish technology of Belman Group. The high-tech Belman expansion joint solutions are supported by:

  • CAD Drawings
  • 3D Illustrations
  • Finite Element Analysis (FEA)
  • Technical consulting for optimal solutions in regards to design, application, locations, in the pipe system and installation requirements
  • Belman Own Calculation Software: BelMaker®, OMTECH and ANSYS

Read more about the technology, design facts, applicability and more information about Belman Engineered Expansion Joint Solutions at Belman Group webpage.

BELMAN GROUP Product offering

Metallic Expansion Joints to India

AXIAL
EXPANSION JOINTS

Axial expansion joints are designed to absorb axial movements (extension and compression in its longitudinal axial direction).

LATERAL
EXPANSION JOINTS

Lateral expansion joints are used to absorb lateral deflection. We have both customized and standard solutions.

ANGULAR
EXPANSIN JOINTS

Angular expansion joints allow angular movements only, contrary to axial expansion joints which elongate and compress in the pipeline axis.

UNIVERSAL
EXPANSION JOINTS

Universal expansion joints consist of two multi-convoluted bellows connected with an intermediate pipe into one assembly.

EXHAUST
EXPANSION JOINTS

Exhaust expansion joints are designed to absorb heat induced expansion and contraction of pipe systems and exhaust systems.



VIBRATION
ABSORBERS

Belman has developed a series of vibration absorbers, which are designed for versatile usage in any system where pump vibrations occur.



PRESSURE BALANCED
EXPANSIN JOINTS

Pressure balanced expansion joints are designed to absorb movements from a pipe system.



ELBOW
EXPANSION JOINTS

It is also known as corner relief expansion joints which are used where pressure thrust forces on equipment or piping is unacceptable and the direction of the pipe system also changes.

CROSSOVER
PIPING BELLOWS

Crossover piping bellows are another example of the specialised steam pipe expansion joints.

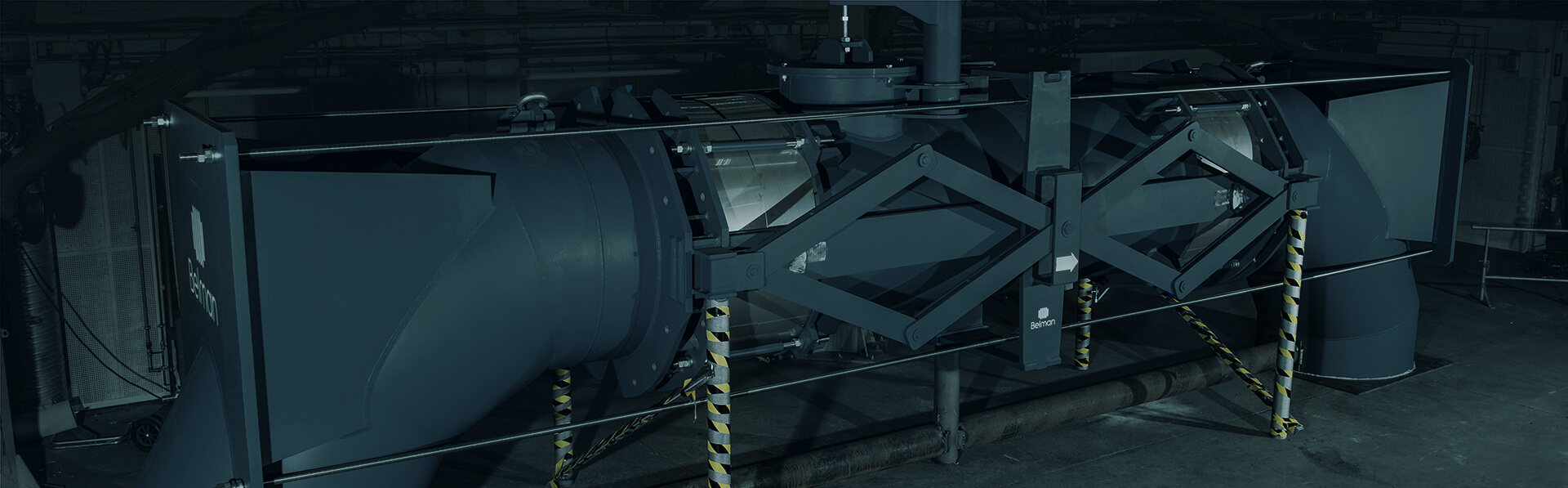

FCCU
EXPANSION JOINT

FCCU is one of the most important units in the oil refinery as it converts heavy distillates into lighter ones (gasoline and diesel).

EXTERNALLY
PRESSURISED BELLOWS

Externally pressurized expansion joints are the perfect solutions when the expansion joints must absorb very large axial movements under high pressure.

RING REINFORCED
EXPANSION JOINTS

Belman designs, manufactures and delivers high pressure ring reinforced expansion joints.





EXPANSION JOINTS
FOR LNG

LPG/LNG carriers are vessels designed especially for the transportation of Liquefied Petroleum Gas and Liquefied Natural Gas.

EXPANSION JOINTS
FOR SCRUBBER

Belman has vast experience in design and manufacture of expansion joints for exhaust gas cleaning (scrubber).

TANK FARM
BELLOWS

Belman provides a comprehensive range of stainless steel expansion joints for tank farm applications.

CLAMSHELL
BELLOWS

Clamshell bellows provide a very effective solution when a quick and unplanned replacement of the bellows is needed.

LENS
EXPANSION JOINTS

Lens expansion joints are the custom requirements in cases where the application requires a single layer bellow.

DISTRICT HEATING
EXPANSION JOINTS

District heating pipelines are mainly exposed to temperature expansions caused by temperature fluctuations.

RECTANGULAR
EXPANSION JOINTS

We design and manufacture rectangular expansion joints with single and multi-convolution bellows.

HYGIENIC EXPANSION
JOINT – SANICOMP

The very first stainless steel expansion joint specially designed and certified for aseptic applications.

offering to india by Belman Flexibles

Technical Specifications

DIMENSION

DN 15-12,000
(DN 6,000-12,000 are supplied in segments)

PRESSURE

Up to 150 Barg

(or more if required – also Ring Reinforcement if needed)

DESIGN CODES

  • EN 13445
  • EN 13480
  • EN 14917
  • ASME VIII, div. I
  • ASME B31.3
  • ASME B31.1
  • AD2000
  • EJMA (other upon requests)

MATERIALS

All stainless steels & High Alloyed stainless steels, including,

  • DUPLEX
  • INCOLOY
  • INCONEL
  • TITANIUM
  • HASTELLOY
  • TANTAL-COATED



durable & cost effective piping bellows

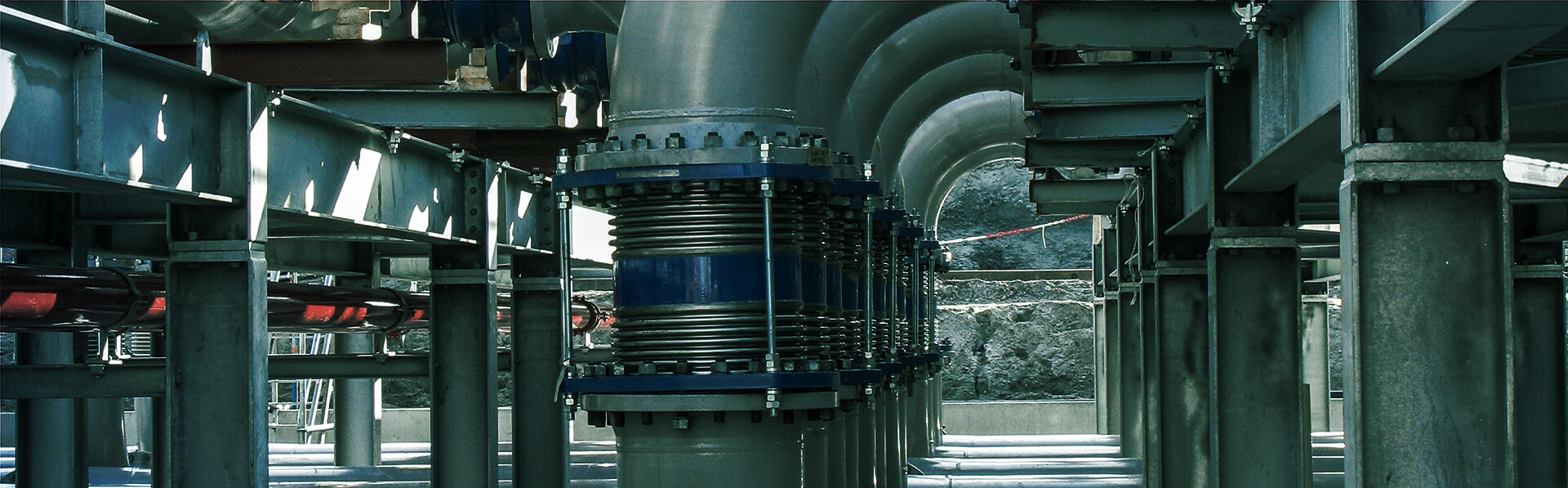

CUSTOMISED                            METALLIC EXPANSION JOINT      SOLUTIONS

BY BELMAN FLEXIBLES INDIA

Most of the metallic expansion joint has to be customized approximately 90% of all Expansion Joints sold are customised to client requirements (case stories). No matter the requirement and the solution, the ground principles in the design procedure are the same. Of course, the client requirements, number of drawings, calculations and analysis varies.

Belman designs and calculates all our high-tech Expansion Joints through the use of our in-house developed software BelMaker®, where all the latest design codes are implemented.

We also use softwares such as ANSYS, OHMTEC, Autodesk Inventor, Rohr2, etc for expansion bellow calculations. Further, Belman expansion joints designing according to all design codes such as EJMA, ASME, EN or client-specific design codes.

It is a combination of 25+ years of experience of Belman Group and the understanding of Indian project requirements that makes the difference. Belman Flexibles India ensures our clients receive the best Metal Expansion bellow solutions based on Belman engineering & QHSE guidelines. At Belman Flexibles India, we have a broader understanding of India’s local project requirements and international experience working closely with different clients from many industries.

0
No of Countries Installed Our Products
Сompleted projects by Belman Group
0
Projects Worldwide
Installations by Belman Group
0
%
Customers Recommending Us Further
Customer Satisfaction Rate
metallic Expansion joiNt offering to india

Downloads

Metallic – Check list
Check list: special designs

The ultimate check list that help you to identify the issues and important things to consider in order to specify an expansion joint requirements for your project.

Metallic – Belmaker
Belmaker Light®

This is our software that can assist you to select the relevant expansion joint from many parameters, searchable resistance tables, flange tables etc.

Catalogue Expansion Joints
Catalogue Expansion Joints

Technical information, guidelines, suggestions for +3500 standard expansion joints

THE ULTIMATE GUIDE FOR EXPANSION JOINTS
THE ULTIMATE GUIDE FOR EXPANSION JOINTS

PDF brochure that contains answers for the most common, questions, issues and concerns in relation to Expansion Joints.
